DC-DC 10Amp Isolated SSR Module, DIN Rail Mount Solid State Relay, Fast Turn-on/Off, for Raspberry-Pi Arduino ESP32 PLC MCU DSP
US$7.20
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.starkfuerweilheim.de
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$7.20
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.starkfuerweilheim.de
Free 30-day returns Details
Product details
| Management number | 247509971 | Release Date | 2026/08/16 | List Price | US$7.20 | Model Number | 247509971 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

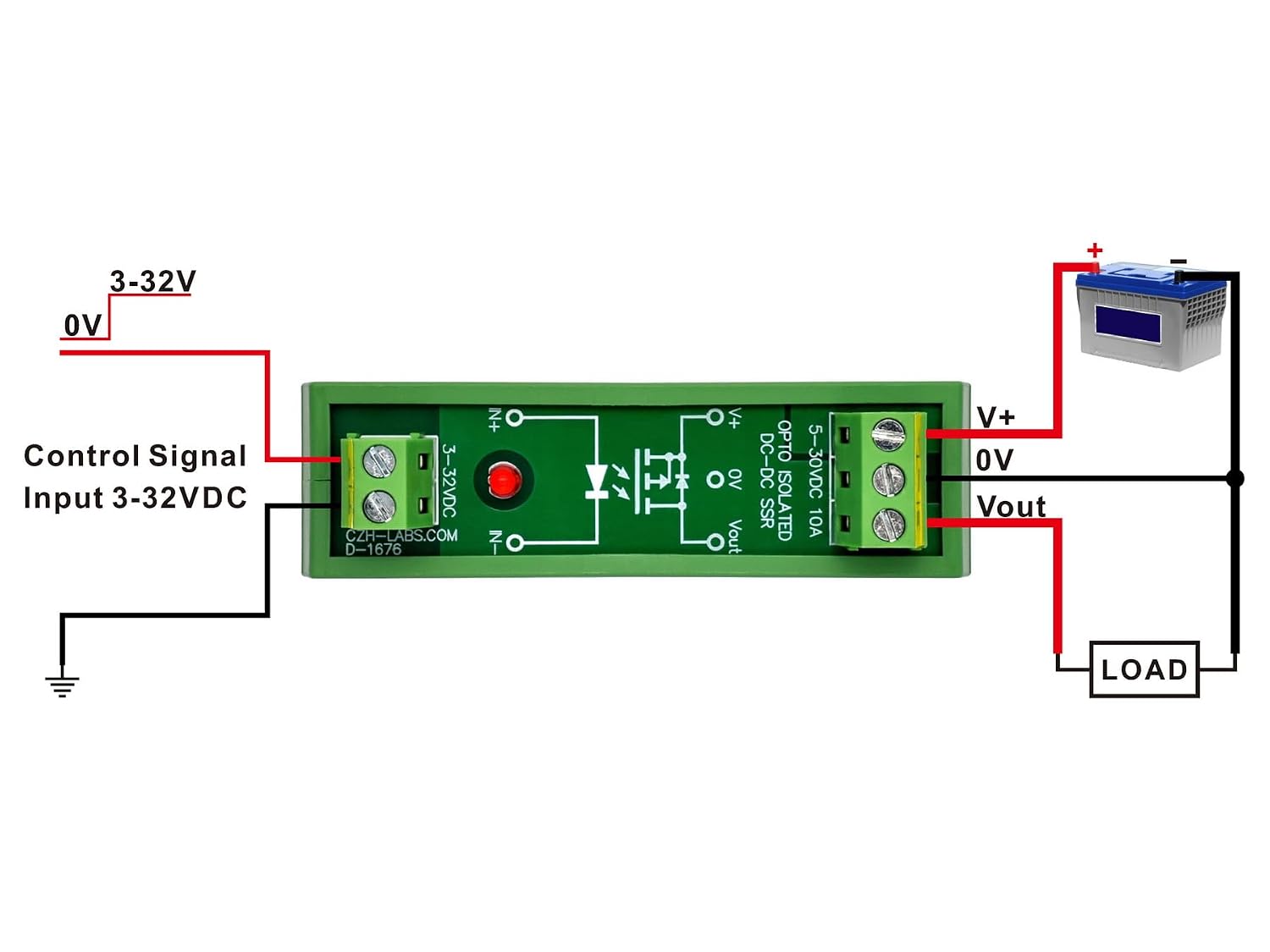

- This is a simple and practical solid state relay module, which is very convenient to use, for Arduino, Raspberry Pi, ESP32, PLC or other projects. The GPIO of these controllers are directly connected to this relay input to control the 5 to 30V high current DC power.
- Input signal turn-on voltage DC 3 to 32V, turn-off voltage DC 0 to 0.8V. LED indication for relay turn-on.
- Output voltage range: DC 5 to 30V. Maximum on-state average current 10 Amp. Maximum on-state current 20 Amp (< 2 second). Non repetitive surge peak on-state current: 160 Amp (<400uS). Maximum on-state resistance 8 milliohms (0.008 ohm).
- Fast turn-on and turn-off delay time: Turn-on delay time 5 to 7 uS, Turn-off delay time 60 to 70uS
- Photocoupler isolation between input control signal and controlled power, isolation surge voltage up to 5000V.
- High quality fireproof nylon material DIN rail mount carrier, can support width 35mm 32mm 15mm rail.
- UL CE certified nylon material mount carrier. FR-4 fiberglass material PCB, UL 94-V0 certified PCB. UL CE CQC certified terminal blocks.
| ASIN | B0FCBN3LKS |
|---|---|
| Model | D-1676T |
| Brand Name | OONO |
| Unit Count | 1 Count |
| Part Number | D-1676T |
| Coil Voltage | 32 volts_of_direct_current |
| Contact Type | Solid State Relay |
| Manufacturer | CZH-LABS |
| Mounting Type | DIN Rail Mount |
| Connector Type | Terminal Block |
| Current Rating | 10 A |
| Operation Mode | Automatic |
| Contact Material | Mosfet |
| Specification Met | RoHS |
| Included Components | SSR Moudle |
| Contact Current Rating | 10 A |
| Minimum Switching Voltage | 3 volts_of_direct_current |
